Shipping Modular Wind Turbine Assemblies: The Technical Logistics Guide

Technical Assessment of Wind Infrastructure Components

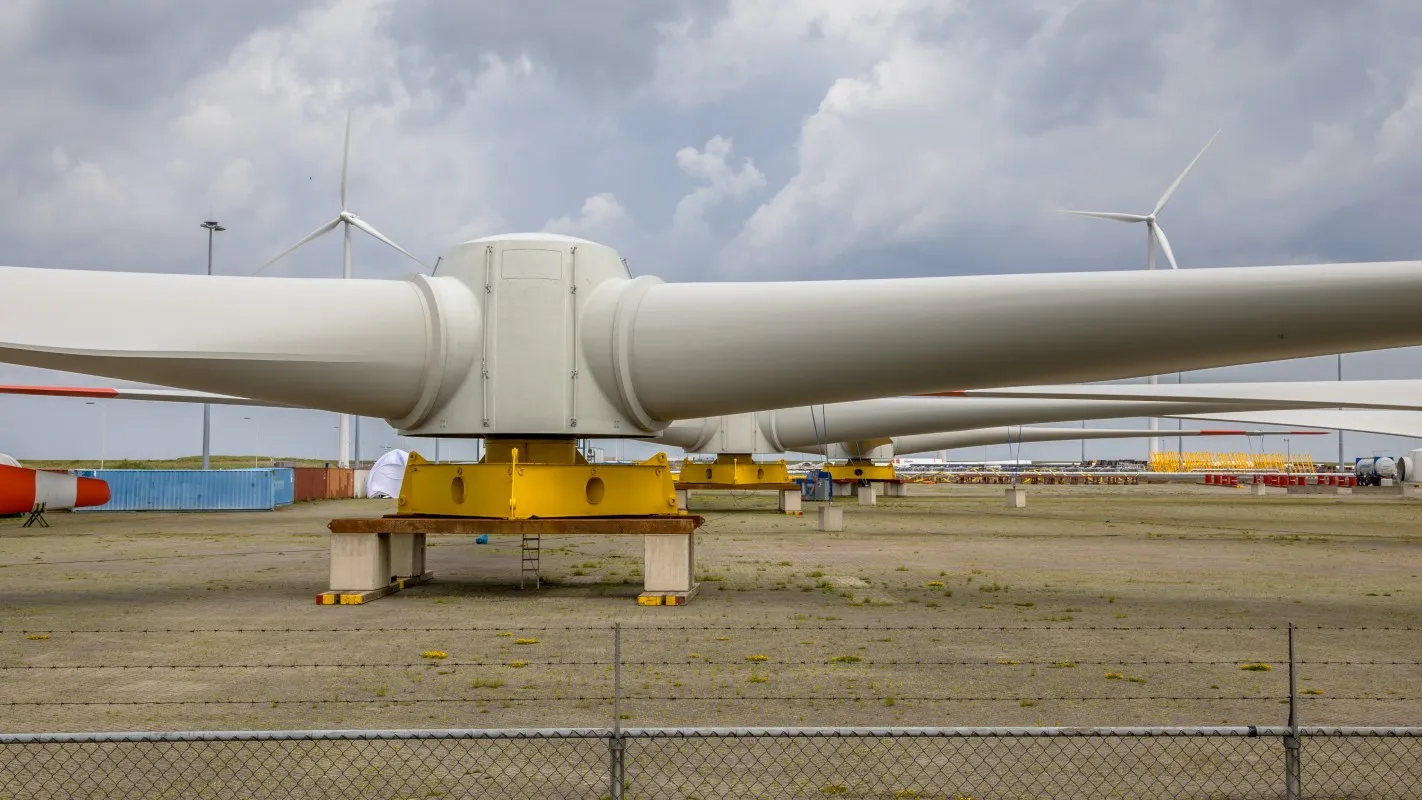

Modular wind turbine assemblies are among the most challenging assets in the global supply chain. They are high-value, sensitive to environmental factors, and possess extreme out-of-gauge (OOG) profiles. Successful transit begins with a technical audit of the four primary components: the nacelle, the blades, the tower sections, and the hub. Each requires a distinct lifting and securing protocol to prevent structural fatigue or internal component misalignment during transit.

You must provide a General Arrangement (GA) drawing for each component to identify the exact centre of gravity and designated lifting points. For nacelles, which can weigh over 400 tonnes and contain sophisticated power electronics, maintaining a level lift is non-negotiable. Blades, often exceeding 80 metres in length, present a unique aerodynamic risk. Wind loading during sea transit can create significant torsional stress, necessitating custom-engineered frames. We coordinate these movements through our sea freight specialists to ensure that vessel stability and deck strength are verified against the turbine modules' specific footprint.

Strategic Mode Selection: Multi-Purpose Vessels and SPMTs

Standard container ships are rarely suitable for wind infrastructure. Instead, we utilise Multi-Purpose Vessels (MPP) or heavy-lift vessels equipped with high-capacity geared cranes. These vessels enable independent loading and discharging at ports without specialised infrastructure for extreme heavy lifts. For projects originating in Germany or Denmark, we utilise sea freight Germany and sea freight Denmark channels to secure vessels with the necessary deck space for blade stowage.

Inland Transport and Abnormal Loads

The journey from the port to the installation site is often the most critical phase. In the UK, turbine components are classified as abnormal loads. Moving an 80-metre blade requires specialised road freight solutions, such as extendable "trombone" trailers or Self-Propelled Modular Transporters (SPMTs). We manage the mandatory ESD2 notifications to UK police and highway authorities, ensuring that the route is pre-cleared for bridge heights and turning radii. A route survey is essential to identify physical obstacles that could delay the delivery of the tower sections or nacelle.

Incoterms 2020 and Financial Risk Allocation

Selecting the correct Incoterm is a critical commercial decision that dictates where the risk of damage transfers from the seller to the buyer. For wind projects, we strongly discourage the use of Ex Works (EXW). Under EXW, the buyer is responsible for loading - a task that requires the manufacturer’s specialised heavy-lift cranes and engineering staff to perform safely. If a nacelle is damaged during loading under EXW, the buyer bears the total loss despite having no control over the operation.

We recommend Free Carrier (FCA) or Delivered at Place (DAP). These terms ensure that the party with the best technical knowledge of the equipment manages the loading and initial transport. For international project cargo, refer to the International Chamber of Commerce for the definitive 2020 rules. For UK exports, ensure your commercial invoice mirrors the latest GOV.UK trade documentation standards to avoid port-side holds.

Customs, VAT, and Duty Management in the UK

Importing or exporting industrial energy machinery into or from the UK requires an EORI number and a deep understanding of the Customs Declaration Service (CDS). Wind turbine components typically fall under HS Code Chapter 84 (machinery) or Chapter 73 (steel tower sections). You must account for 20 per cent Import VAT and applicable customs duties. However, there are significant opportunities for relief available for renewable energy projects.

Inward and Outward Processing Relief

If components are entering the UK for specialised assembly or repair before being re-exported, you may utilise Inward Processing (IP). This regime allows you to suspend Import VAT and duty, providing a significant cash-flow advantage. Similarly, Outward Processing (OP) can be used when sending UK-manufactured blades abroad for specialised coating or testing. Our customs clearance team manages these entries to ensure full compliance with HMRC audits and prevent the overpayment of taxes. For shipments from China, we ensure all documents comply with sea freight China protocols to navigate specific trade tariffs and quotas.

Risk Controls: SOLAS VGM and Marine Insurance

Safety at sea is governed by strict international conventions. Two areas are non-negotiable for wind infrastructure cargo: weight verification and insurance coverage.

Verified Gross Mass (VGM) Compliance

Under the Safety of Life at Sea (SOLAS) convention, every item loaded onto a vessel must have a certified weight. This regulation was introduced by the International Maritime Organisation (IMO) to enhance maritime safety and prevent incorrect decisions on vessel stowage. For modular turbine assemblies, we utilise Method 2 for VGM. This involves weighing all individual components, packing materials, and transport frames, then adding them to obtain the final certified weight. Inaccurate weight declarations can lead to vessel instability and are strictly monitored by the Maritime and Coastguard Agency in the UK. Failure to provide a VGM will result in the cargo being rejected at the port terminal.

Marine Cargo Insurance

Carrier liability is limited by the Hague-Visby Rules, which usually cover only a few pounds per kilogram. This is insufficient for a multi-million-pound nacelle or hub. We advise securing Institute Cargo Clauses (A) for All Risks coverage. This protects against theft, damage during heavy weather, and handling accidents. Given the technical nature of wind turbines, ensure the policy covers Mechanical and Electrical Derangement, as internal damage without external signs of impact can render a unit inoperable at the installation site.

Essential Documentation and Technical Compliance

The documentation trail for a wind project is exhaustive. You must maintain a centralised file of the following documents to avoid demurrage and port holds:

• Certificate of Origin (COO): Required to determine preferential duty rates under UK Trade Agreements.
• Material Safety Data Sheet (MSDS): Required for nacelles, as they contain industrial lubricants and hydraulic fluids that are classified as dangerous goods.
• Export Licenses: Some dual-use technology in turbine control systems may require a license from the Export Control Joint Unit.
• Packing List: A detailed breakdown of every component, frame, and securing bolt.
• Bill of Lading: The primary contract of carriage and title to the goods.

Cost Drivers in Project Logistics

Budgeting for modular wind assemblies requires an understanding of Landed Cost. The freight rate is only one component. You must also factor in:

• Bunker Adjustment Factor (BAF): Fuel surcharges that have become more volatile since the IMO 2020 low-sulphur mandate, which reduced fuel sulphur content from 3.5% to 0.5%.
• Demurrage and Detention: If a ship is delayed due to missing paperwork or customs errors, the carrier will charge a daily rate that can exceed 20,000 pounds for heavy-lift vessels.
• Lashing and Securing Fees: Professional stevedores must secure the cargo using certified chains, turnbuckles, and welded sea-fastenings. This technical labour is a significant cost driver for OOG shipments.
• Canal Tolls: If transit involves the Suez or Panama canals, surcharges are calculated based on the Net Tonnage of the transport vessel and the deck cargo profile.
