Guide to Shipping Precast Concrete Panels Internationally

Strategic Mode Selection for Structural Concrete Assets

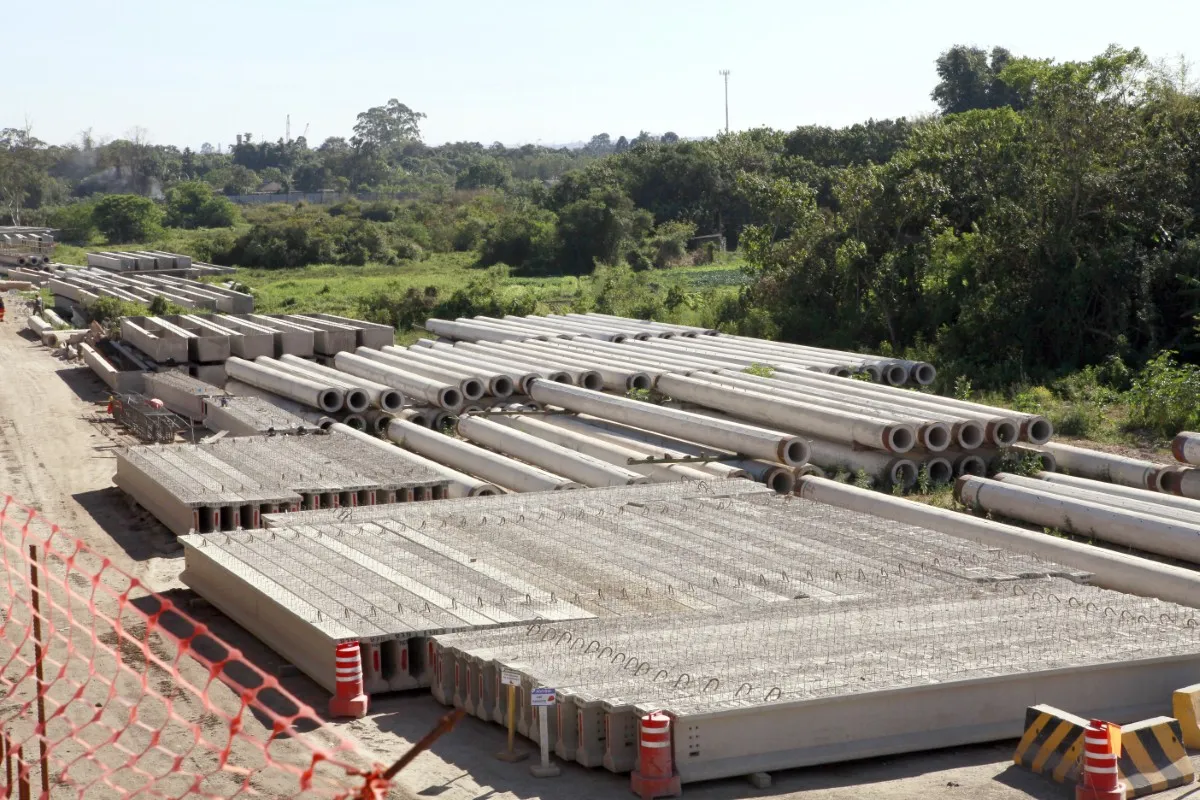

Precast concrete panels are high-value, high-mass assets that present unique challenges in global logistics. Unlike standard containerised goods, the structural integrity of a concrete panel is susceptible to torsional stress and impact damage during transit. Success begins with selecting a transport mode that respects the product's engineering tolerances. Industrial panels rarely fit within standard shipping parameters, necessitating a consultative approach to equipment selection.

Sea Freight: OOG and Flat Rack Solutions

Most large-scale architectural panels require specialised sea freight solutions. If a panel exceeds the internal width of 2.35 metres or the height of 2.39 metres of a standard 40ft high-cube container, it is classified as Out-of-Gauge (OOG). For these movements, we utilise 40ft Flat Rack containers. These units provide a robust base without side walls, allowing for the use of custom A-frames. These frames ensure that panels travel in a vertical or near-vertical orientation, which is the strongest position for concrete to resist G-forces encountered during ocean transit.

For exceptionally large projects where multiple panels exceed container limits, we arrange Breakbulk shipping. This involves stowing the panels directly on the vessel's deck or in the hold. This method requires specialised lifting beams to ensure the load is distributed evenly across the panel's internal reinforcement bars, preventing hairline fractures during the lift.

Road Freight and Inland Transport in the UK

The journey from the manufacturing plant to the port is often the most high-risk phase. In the UK, moving concrete panels involves specialised road freight utilising low-loaders or "trombone" trailers that can extend to accommodate varying lengths. If a panel width exceeds 2.9 metres, we manage the mandatory Abnormal Load notifications to UK police and highway authorities via the ESD2 system. This ensures the route is pre-cleared for bridge heights and axle-weight limits, avoiding costly detours or structural strikes.

Incoterms 2020 and Financial Risk Allocation

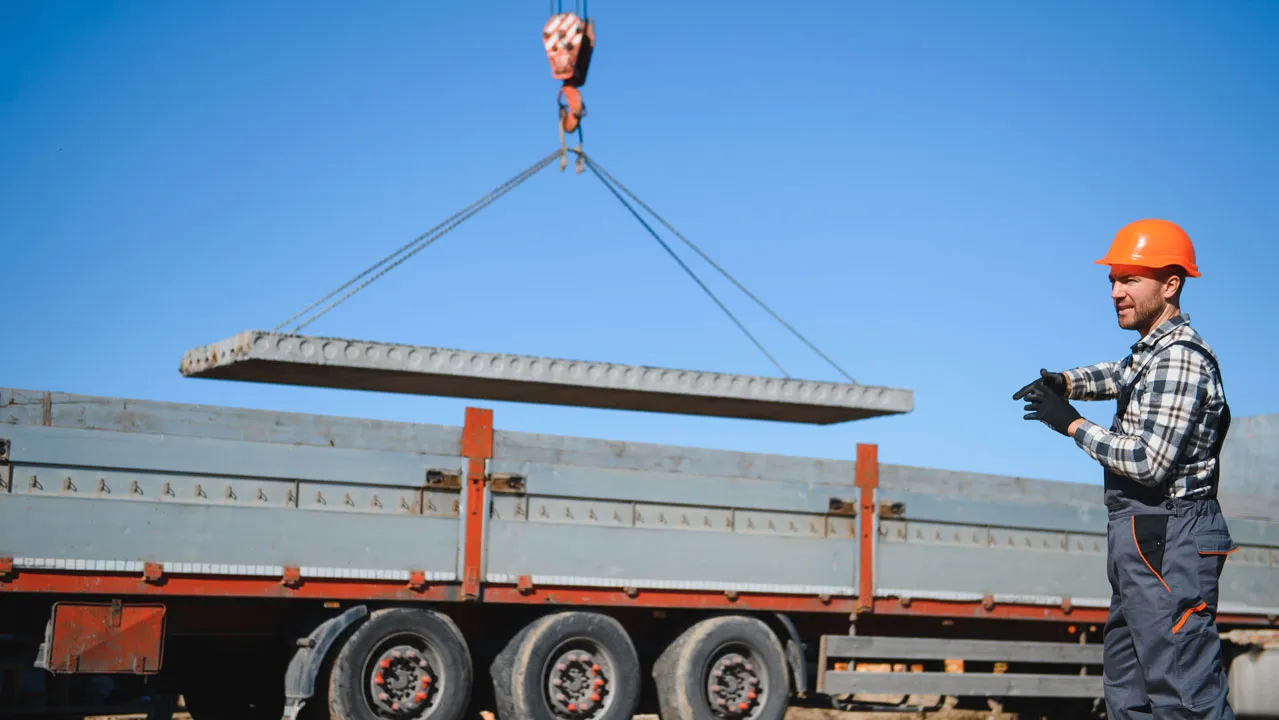

Selecting the correct Incoterm is a critical commercial decision that dictates where the risk of damage transfers from the seller to the buyer. For precast concrete, we advise against Ex Works (EXW). Under EXW, the buyer is responsible for loading. This is a highly technical task where the manufacturer’s specialised overhead cranes are better suited to perform the lift safely. If a panel cracks during loading under EXW, the buyer bears the total loss despite having no control over the factory operation.

We typically recommend Free Carrier (FCA) or Delivered at Place (DAP). Under FCA, the seller manages the loading and export customs, providing the buyer with a clean Bill of Lading. For international project cargo, refer to the International Chamber of Commerce for the definitive 2020 rules. For UK exports, ensure your commercial invoice mirrors the latest GOV.UK trade documentation standards to prevent port-side holds and administrative delays.

Technical Documentation and Legal Compliance

Compliance for concrete panels extends beyond simple manifests. Because these assets are often part of a wider construction timeline, documentation must be exhaustive to prevent demurrage charges and project delays.

Verified Gross Mass (VGM) and SOLAS Regulations

Under the Safety of Life at Sea (SOLAS) convention, every item loaded onto a vessel must have a certified weight. For concrete panels, where weight can vary significantly based on the aggregate mix and reinforcement steel, we utilise Method 2 for VGM. This involves weighing the individual panels and adding the weight of the lashing, A-frames, and dunnage. Inaccurate weight declarations can lead to vessel instability and are strictly enforced by the Maritime and Coastguard Agency. Failure to provide a VGM will result in the cargo being rejected at the terminal gate.

Commodity Codes and Customs Duties

Precast concrete panels generally fall under HS Code Chapter 68. It is essential to have a valid UK EORI number to process these entries. Our customs clearance team uses the Customs Declaration Service (CDS) to manage entries, ensuring that any applicable anti-dumping duties or quotas are identified well before the vessel arrives. For shipments to specific regions, we ensure all documents comply with local customs protocols to avoid delays in major international hubs.

Physical Protection and Damage Mitigation

Concrete is inherently brittle and susceptible to corner chipping and surface abrasion. During a multi-week ocean voyage, panels are exposed to constant vibration and humidity. We implement the following technical protections:

• Load Distribution: We use high-density timber dunnage to prevent point-loading. Concrete should never rest directly on steel container floors or vessel decks.
• Edge Protection: Reinforced corner guards prevent chipping from lashing chains. We use 16mm or 20mm grade 80 lashing chains with turnbuckles to secure the frames to the ship’s deck.
• Vapour Barriers: For architectural concrete, we use VCI film to prevent reinforcement steel within the concrete from oxidising due to salt air exposure.

All timber used for dunnage or crating must comply with ISPM 15 standards. This is a mandatory biosecurity requirement that prevents the spread of pests across borders. Look for the official heat-treatment stamp on all timber components used in the shipment. Failure to comply can lead to the entire shipment being refused entry and returned at the shipper's expense.

Understanding Cost Drivers and Budgetary Risks

The freight rate is only one component of the total landed cost. When budgeting for precast concrete logistics, you must account for several technical variables that can impact the final invoice.

• Bunker Adjustment Factor (BAF): Fuel surcharges that fluctuate based on global oil prices. These are particularly volatile for heavy-lift and project cargo vessels.
• Demurrage and Detention: If a shipment is held at the port due to customs errors, daily fees can exceed 1,000 pounds per container. We mitigate this by performing a pre-shipment audit of all technical specifications.
• Lashing and Securing Fees: Unlike standard FCL, OOG cargo requires professional stevedores to perform lashing. This is a significant labour cost that varies by port.
• Lifting Surcharges: Ports charge a premium for out-of-profile lifts that require specialised spreaders or slow crane cycles.

Project Management and Supply Chain Visibility

Given the "just-in-time" nature of modern construction, visibility is paramount. We utilise GPS tracking for inland movements and satellite AIS tracking for sea transit. This allows project managers to coordinate on-site cranes and labour based on real-time arrival data. Our control tower provides updates every 48 hours, ensuring that any potential delays due to weather or port congestion are communicated early, allowing for schedule adjustments.
