Shipping Industrial Glass Recycling Units: The Technical Logistics Guide

Strategic Logistics Planning for Recycling Infrastructure

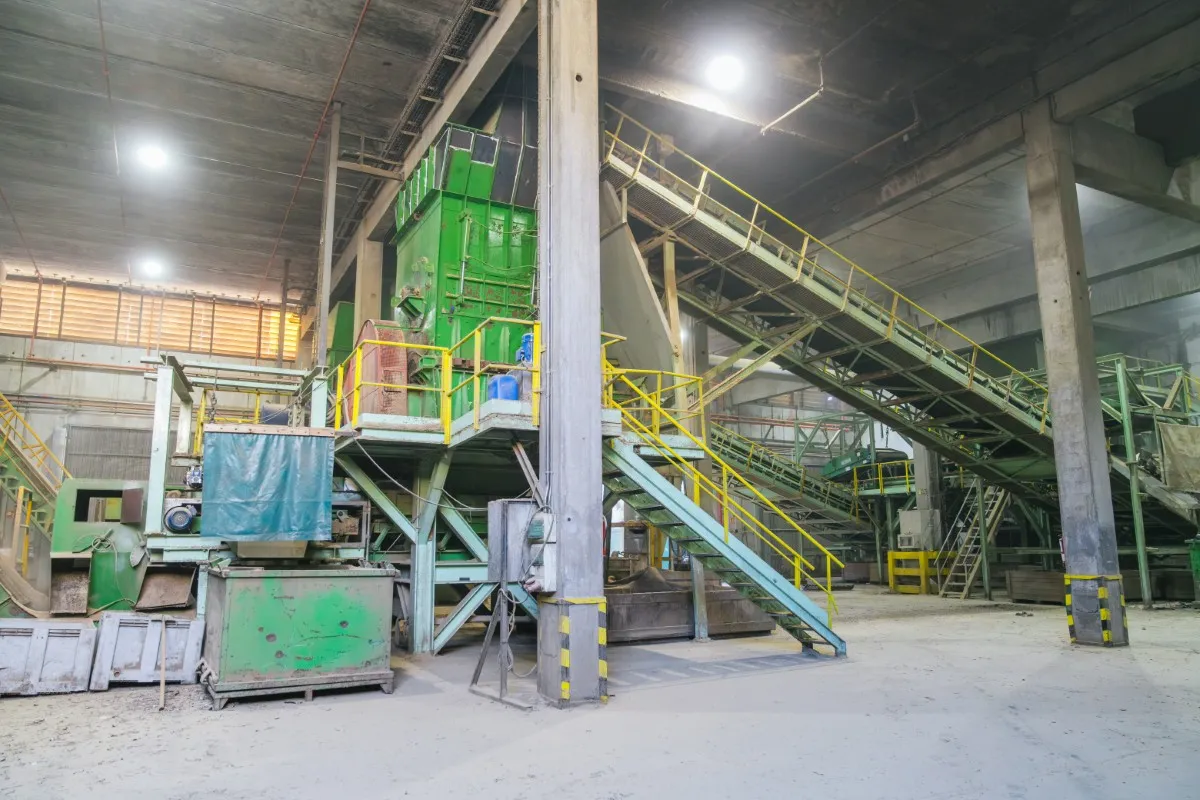

Industrial glass recycling units are high-value, sensitive assets that rarely fit within standard shipping parameters. Successful transit begins with a technical assessment of the machinery, which often includes optical sorters, industrial crushers, and kilns. You must provide a General Arrangement drawing to identify the exact centre of gravity and designated lifting points. This data prevents structural stress during crane operations and ensures the equipment remains stable throughout the voyage.

Most large-scale recycling systems require sea freight solutions utilising Out-of-Gauge (OOG) equipment like flat racks or dedicated breakbulk vessels. If your recycling unit exceeds 2.6 metres in width or 2.9 metres in height, it is classified as OOG, necessitating specialised road permits for the UK leg of the journey. For global movements, check specific port capabilities via the International Chamber of Commerce guidelines to ensure your chosen Incoterm aligns with your risk appetite.

Incoterms 2020 and Financial Risk Allocation

Selecting the correct Incoterm is a critical commercial decision that dictates where the risk of damage transfers from the seller to the buyer. For high-value recycling machinery, we advise against Ex Works (EXW). Under EXW, the buyer is responsible for loading - a highly technical task where the manufacturer’s specialised overhead cranes are better suited to perform the lift safely. If a unit is damaged during loading under EXW, the buyer bears the total loss despite having no control over the factory operation.

We typically recommend Free Carrier (FCA) or Cost and Freight (CFR). Under FCA, the seller manages the loading and export customs, providing the buyer with a clean Bill of Lading. For international project cargo, refer to the International Chamber of Commerce for the definitive 2020 rules. For UK exports, ensure your commercial invoice mirrors the latest GOV.UK trade documentation standards to prevent port-side holds and administrative delays.

Technical Documentation and Legal Compliance

Compliance for recycling units extends beyond simple manifests. Because these units often contain sophisticated sensors, residual glass dust, or hydraulic fluids, documentation must be exhaustive to prevent demurrage charges and project delays.

Verified Gross Mass (VGM) and SOLAS Regulations

Under the Safety of Life at Sea (SOLAS) convention, every item loaded onto a vessel must have a certified weight. This regulation was introduced by the International Maritime Organisation (IMO) to enhance maritime safety and prevent incorrect vessel stowage decisions. For recycling machinery, we utilise Method 2 for VGM. This involves weighing the individual components and adding the weight of the lashing, crating, and dunnage. Inaccurate weight declarations can lead to vessel instability and are strictly enforced by the Maritime and Coastguard Agency in the UK. Failure to provide a VGM will result in the cargo being rejected at the terminal gate.

Commodity Codes and Customs Duties

Glass recycling machinery generally falls under HS Code Chapter 84 (Nuclear reactors, boilers, machinery and mechanical appliances). It is essential to have a valid UK EORI number to process these entries. Our customs clearance team uses the Customs Declaration Service (CDS) to manage entries, ensuring that any applicable duties or quotas are identified well before the vessel arrives. For shipments to Germany, we ensure all documents comply with sea freight Germany customs protocols to avoid delays in Hamburg or Bremerhaven.

Physical Protection and Damage Mitigation

Industrial machinery is inherently susceptible to corrosion and impact damage. During a multi-week ocean voyage, recycling units are exposed to constant vibration and humidity. We implement the following technical protections:

• Load Distribution: We use high-density timber dunnage to prevent point-loading. Machinery should never rest directly on steel container floors.
• Edge Protection: Reinforced corner guards prevent chipping or bending from lashing chains. We use 16mm or 20mm grade 80 lashing chains with turnbuckles to secure the units to the ship’s deck.
• Vapour Barriers: For units with sensitive electronic and optical sorters, we use VCI (Vapour Corrosion Inhibitor) film to prevent oxidation of control panels from salt air exposure.

All timber used for dunnage or crating must comply with ISPM 15 standards. This is a mandatory biosecurity requirement that prevents the spread of pests across borders. Look for the official heat-treatment stamp on all timber components used in the shipment. Failure to comply can lead to the entire shipment being refused entry and returned at the shipper's expense.

Mode Selection: FCL, OOG, and Breakbulk

The physical profile of your recycling unit dictates the shipping method. We categorise these shipments into three primary modes based on weight and dimension tolerances.

Full Container Load (FCL)

If your machinery can be dismantled into components that fit within standard 40ft high-cube containers, FCL is the most secure and cost-effective option. This provides a weather-tight environment and reduces handling risk at transhipment points.

Out-of-Gauge (OOG) and Flat Racks

If the unit exceeds standard container width or height, we utilise flat racks. These units provide a robust base without side walls. However, OOG cargo incurs Lost Slot surcharges, as the oversized machinery prevents the carrier from loading containers in adjacent slots. We calculate these surcharges against the total landed cost to ensure budget accuracy.

Breakbulk and Heavy-Lift Ships

For exceptionally large recycling plants that cannot be containerised, we utilise Breakbulk shipping. This involves stowing the machinery directly onto the vessel deck or within the hold. In the USA, mining and recycling projects, we frequently utilise geared vessels via sea freight USA networks. These ships carry their own high-capacity cranes, allowing for independent discharge at ports lacking shore-side heavy-lift infrastructure.

Customs Clearance, VAT, and Duty Management in the UK

Importing or exporting industrial plant machinery involving the UK requires a deep understanding of tax structures. You must account for 20 per cent Import VAT and applicable customs duties. However, there are significant relief opportunities available.

Inward and Outward Processing Relief

If a recycling unit enters the UK for specialised repair or upgrade before being re-exported, you may utilise Inward Processing (IP). This regime allows you to suspend Import VAT and duty, providing a significant cash-flow advantage. Similarly, Temporary Admission (TA) can be used for units brought to the UK for testing or exhibition. Our customs clearance team manages these entries to ensure full compliance with HMRC audits and prevent the overpayment of taxes.

Risk Controls and Marine Insurance

High-value industrial machinery carries significant financial risk during transit. Carrier liability is limited by international conventions like the Hague-Visby Rules, which usually cover only a small fraction of the machine's value. We advise securing Institute Cargo Clauses (A) for All Risks coverage. This protects against theft, damage during heavy weather, and handling accidents. Given the technical nature of recycling systems, ensure the policy covers Mechanical and Electrical Derangement, as internal damage without external signs of impact can render a unit inoperable.

Understanding Cost Drivers and Budgetary Risks

The freight rate is only one component of the total landed cost. When budgeting for industrial logistics, you must account for several technical variables:

• Bunker Adjustment Factor (BAF): Fuel surcharges that fluctuate based on global oil prices. These are particularly volatile for heavy-lift vessels.
• Demurrage and Detention: If a shipment is held at the port due to customs errors, daily fees can exceed 1,000 pounds per container. We mitigate this by performing a pre-shipment audit of all technical specifications.
• Lashing and Securing Fees: Unlike standard FCL, OOG cargo requires professional stevedores to perform lashing. This is a significant labour cost that varies by port.
• Low-Sulphur Fuel Surcharges: Since the IMO 2020 mandate, vessels must use fuel with a sulphur content of 0.5% or less, leading to higher operating costs passed on to the shipper.

For the final leg of the journey, we coordinate road freight using low-loader trailers or modular SPMTs (Self-Propelled Modular Transporters). In the UK, this requires Abnormal Load notifications to the police and local authorities via the ESD2 system.
