International Helicopter Shipping

Shipping a helicopter across global borders involves more than just booking a freight slot. These are sensitive, high-value assets that require a deep understanding of weight distribution and centre of gravity, as well as strict regulatory compliance. Whether you move an Airbus H145 for a private owner or a Sikorsky S-76 for offshore operations, the process demands a tailored engineering plan. At Shipping International, we serve as the primary link between the hangar and the destination, managing the technical complexities of air and sea freight. Our goal is to protect your investment while navigating the complexities of UK and international customs.

Technical Specifications and Initial Assessment

Every successful move starts with accurate data. We require a full technical profile of the aircraft to plan the lifting and securement strategy. This data allows us to select the right transport mode and calculate the exact footprint on a vessel or aircraft deck.

Essential Data Points

• Make and Model: Specification for types like the Bell 412 or Leonardo AW139.
• Dimensions: Total length (including the tail boom), width (with or without rotors), and the total height to the rotor head.
• Weight: The dry weight of the aircraft, excluding fuel.
• Centre of Gravity: This is vital for crane lifts and for positioning the aircraft in the cargo hold.

For example, an Airbus H145 measures roughly 13.5 metres. If you ship this with the blades attached, the width increases significantly. We often suggest removing the rotor blades to reduce the shipping volume and the risk of stress fractures during transit.

Selecting the Optimal Transport Mode

The choice between sea and air depends on your budget, the urgency of the move, and the helicopter's physical size. We weigh these factors to find the most efficient path.

Air Freight: Speed and Safety

When time is the main driver, air freight is the preferred choice. For smaller models, we use the Boeing 747-400F, which allows for nose or side loading. However, large helicopters often require the Antonov An-124. This aircraft features a nose-loading ramp that lowers to the ground, allowing us to winch the helicopter directly into the 36-metre cargo bay. Air transport reduces the total transit time and limits the exposure to humidity and salt spray found at sea.

Sea Freight: Cost-Effective Capacity

For non-urgent moves or multiple units, sea freight offers significant savings. We use several methods within the maritime sector:

• Roll-on/Roll-off (RoRo): The helicopter is secured to a Mafi trailer (a heavy-duty wheeled platform) and towed onto the vessel. This is ideal for helicopters with wheels or skids, with ground-handling wheels attached.
• Breakbulk: If the helicopter is too large to fit in a container or trailer, we load it as individual cargo on a multi-purpose vessel. The aircraft is lifted using specialised non-marking slings and secured to the ship’s deck or in the hold.
• FCL (Full Container Load): Some smaller helicopters, such as the Robinson R44, can fit inside a 40ft High Cube container when disassembled. This provides the highest level of security and protection from the elements.

Incoterms and Commercial Responsibility

Incoterms define the point at which the risk transfers from the seller to the buyer. Choosing the right term is vital for high-value aerospace cargo. We recommend the following for helicopter shipments:

• FCA (Free Carrier): The seller delivers the helicopter to our UK warehouse or the departure port. We then take over the international logistics.
• DAP (Delivered at Place): We manage the entire journey from the origin hangar to your specified destination address, excluding import duties.
• DDP (Delivered Duty Paid): We handle the full door-to-door process, including the payment of all import taxes and customs clearance fees.

Defining these roles early prevents disputes over who pays for port storage (demurrage) or specialised lifting equipment.

Professional Packing and Securement

The physical safety of the aircraft depends on the quality of the cradles and lashing. We use bespoke engineering solutions to prevent any movement during the pitching and rolling of a ship or the turbulence of a flight.

Bespoke Cradles and Skids

We build custom timber or steel cradles that support the helicopter at its strongest structural points. These cradles are built to ISPM15 standards to ensure they pass biosecurity checks in every country. A well-built cradle prevents the aircraft's weight from resting on its landing gear for extended periods, which can cause seal failure.

Component Protection

Rotor blades and tail rotors are the most vulnerable parts. We remove these and pack them into custom-built, foam-padded crates. We seal avionics and engine intakes using high-grade desiccant packs and heat-shrunk plastic wrap. This barrier protects sensitive electronics from corrosion caused by salt air and humidity.

Navigating Customs and Documentation

Helicopters are often classified as dual-use goods, meaning they could have military or civilian applications. This triggers strict export control requirements in the UK. Our customs clearance team ensures every permit is in place before the aircraft reaches the port.

Required Documentation Set

• Commercial Invoice: Detailing the value, currency, and Incoterms.
• Packing List: A technical breakdown of the aircraft and all crated parts.
• Certificate of Airworthiness: Often required for export to prove the aircraft’s status.
• Export Licence: Mandatory if the aircraft falls under the UK Strategic Export Control Lists.
• Bill of Lading / Air Waybill: The legal contract of carriage and title to the goods.

For US-bound cargo, we manage the mandatory filings with U.S. Customs and Border Protection (CBP), including the ISF (10+2) security filing. Errors in these documents can lead to massive fines or the seizure of the aircraft.

Cost Drivers in Aerospace Shipping

The price of shipping a helicopter is influenced by more than just the distance. We provide a transparent breakdown of the following costs:

• Volumetric Weight: Air freight is charged on the space occupied. A large helicopter with blades attached has a high volumetric weight.
• Bunker Adjustment Factor (BAF): A fuel surcharge for sea freight that tracks global oil prices. We monitor these rates to help you time your shipment.
• Currency Adjustment Factor (CAF): Because the shipping industry trades in US Dollars, we use CAF to manage exchange rate shifts for UK clients.
• Specialist Lifting: The cost of hiring heavy-lift cranes and professional riggers at the port or airport.

We also manage the IMO 2020 fuel standards, which require ships to use low-sulphur fuel. You can find out more about these global standards on the International Maritime Organisation (IMO) website.

Insurance and Risk Management

Standard carrier liability is limited by weight and rarely covers the true value of a helicopter. We strongly recommend All Risks marine or aviation insurance. This policy covers the aircraft from the moment it leaves the hangar until it reaches its final destination. It also protects you from General Average, a maritime law where all cargo owners share the cost if a ship is saved from a disaster. For more on these rules, see the Federal Maritime Commission guidelines on carrier liability.

The Shipping International Process

We follow a strict sequence to ensure your helicopter arrives safely and on time.

1. Detailed Quote: We review your technical drawings and provide an all-in price, including all port and handling fees.
2. Engineering Plan: Our team designs the cradles and securement strategy, selecting the best vessel or aircraft for the route.
3. Documentation Prep: We apply for the necessary export licences and prepare the customs declarations.

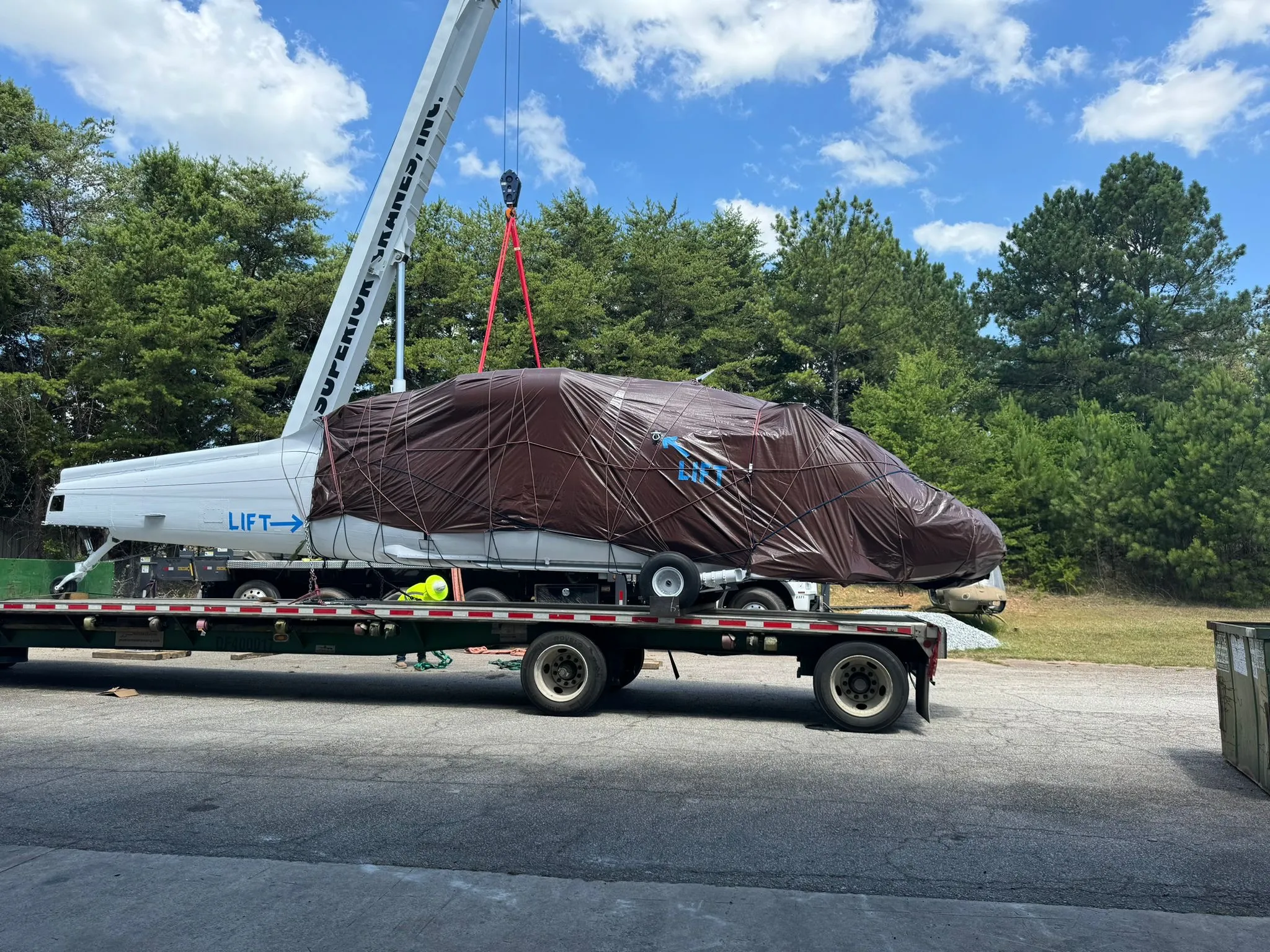

4. Collection and Rigging: We arrange road freight using low-loader trailers and oversee the rigging at the port.
5. Transit and Tracking: You get real-time updates as the cargo moves through our global network.
6. Customs and Delivery: We clear the goods at the destination and manage the final-mile transport to the landing site.
